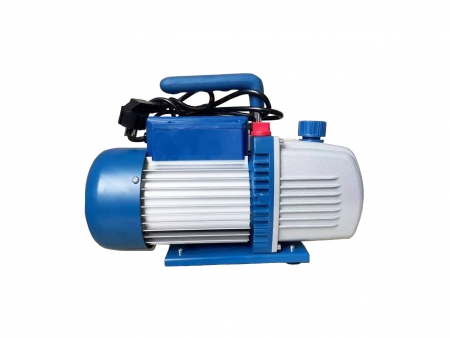

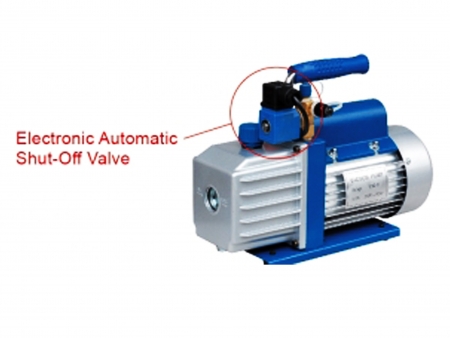

High Speed Vacuum Pumps

Components & Other Products
High Speed Vacuum Pumps
High Speed Vacuum Pumps
High Speed Vacuum Pumps_2

Description

High Speed Vacuum Pumps

ADD INQUIRY

Specifications

Model/ItemFlow Rates (CFM) Ultimate Vacuum Power (HP) Rotating Speed (R/Min.) Oil Capacity (ML) Dimensions (mm) N.W. (KGS) Inquiry
110V 220V Pa. Microns. 110V 220V
TW-1M 2.5 2 5 35 1/6 3360 2800 150 246x105x200 4.3
TW-1.5M 3.6 3 5 35 1/4 3360 2800 150 246x105x200 4.3
2TW-0.5M 1.2 1 3x10^-1 20 1/6 3360 2800 150 246x105x200 5
2TW-1M 2.5 2 3x10^-1 20 1/4 3360 2800 200 246x105x200 5.3
2TW-1E 3 2.5 5x10^-1 25 1/4 3360 2800 200 249x121x230 7
2TW-2E 5.5 4.5 5x10^-1 25 1/3 3360 2800 250 315x125x240 9
2TW-3E 8.5 7 5x10^-1 25 1/2 3360 2800 280 340x135x260 9
2TW-4E 13.2 11 5x10^-1 25 3/4 3360 2800 600 390x145x280 10
ADD INQUIRY
