FCO Series 72T Multigear Wrenching Tools

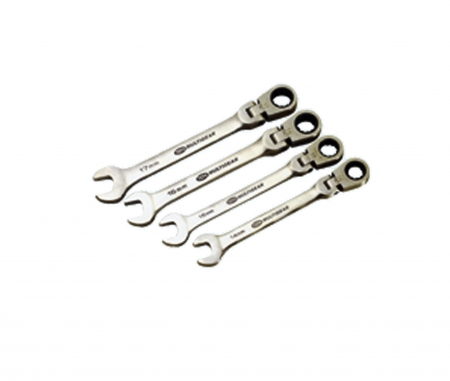

FCO Series 72T Multigear Wrenching Tools

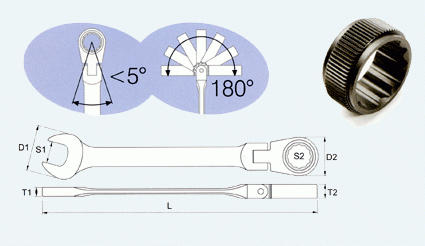

FCO Series 72T Multigear Wrenching Tools Drawing

Description

72T Stainless Steel Multigear Wrenching Tools:
- In Both Inch and Metrics Sizes

ADD INQUIRY

Specifications

Model/ItemSize DIMENSIONS Inquiry
S1 S2 D1 (mm) D2 (mm) T1 (mm) T2 (mm) L (mm)
FCO-08 8MM 8mm 8mm 18 17 5.5 9 143
FCO-09 9MM 9mm 9mm 20 20 6 10 152
FCO-10 10MM 10mm 10mm 23 20 6 10 158
FCO-11 11MM 11mm 11mm 24 22 6 10 164
FCO-12 12MM 12mm 12mm 26 24 6.5 10 141
FCO-13 13MM 13mm 13mm 30 24 6.5 10 177
FCO-14 14MM 14mm 14mm 30 27 7 10 187
FCO-15 15MM 15mm 15mm 32 27 7 10 195
FCO-16 16MM 16mm 16mm 35 30 8 13 211
FCO-17 17MM 17mm 17mm 35 30 8 13 220
FCO-18 18MM 18mm 18mm 37 38 9 13 235
FCO-19 19MM 19mm 19mm 39 38 9 13 244
FCO-25 5/16" 5/16" 5/16" 18 17 5.5 9 143
FCO-30 3/8" 3/8" 3/8" 23 20 6 10 158
FCO-35 7/16" 7/16" 7/16" 24 22 6 10 164
FCO-40 1/2" 1/2" 1/2" 30 24 6.5 10 177
FCO-45 9/16" 9/16" 9/16" 30 27 7 10 187
FCO-50 5/8" 5/8" 5/8" 35 30 8 13 211
FCO-55 11/16" 11/16" 11/16" 35 30 8 13 220
FCO-60 3/4" 3/4" 3/4" 39 38 9 13 244
