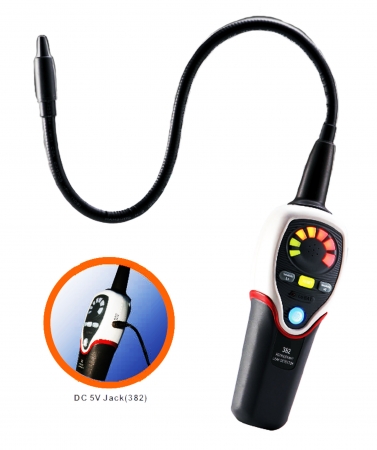

RL-382 Refrigerant Leakage Detector

Digital Test Instruments
RL-382 Regrigerant Leakage Detector
RL-382 Regrigerant Leakage Detector

Description

Digital Refrigerant Leakage Detector:
- For maintaining the air-condition or a cooling system.
- Air sucking system for faster response and higher sensitivity.
- Mirco-processor control with advanced digital signal processing.
- Heated semiconductor gas sensor.
- 3 Levels of leak sensitivity selector.
- 7 LED Tri-colored visual leak level indicator.
- Variable intensity audible alarm.
- Ambient concentration reset.
- 15.5" (40CM) Flexible stainless probe.
- Detection of R22, R32, R134A, R290, R404A, R407C, R410A, R600A & HFO-1234yf refrigerant gases.
- Operating temperature: 0 to 40°C (32 to 104°F).
- Warm-up time: 45 Seconds.
- Reference leak source included.
- Sensitivity as small 3gr/year.
- Low battery indication.
- Accordance with SAE J1627, CE Design.

Size: 21.7 x 6.6 x 5.6 cm.
Weight: 400g (with batteries).
Power Source: AA Size Alkaline Batteries x 4
Battery Life: Approx. 7hrs.
AC Adapter: @3.3V 0.5A.

ADD INQUIRY

Specifications

Model/ItemDESCRIPTION Inquiry
RL-382 Regrigerant Leakage Detector Detection of R22, R32, R134A, R290, R404A, R407C, R410A, R600A & HFO-1234yf refrigerant gases.
