K205 HVAC Heat Exchanger
K205 HVAC Heat Exchanger

Description

- Compact and Efficient HVAC Heat Exchangers.

ADD INQUIRY

Specifications

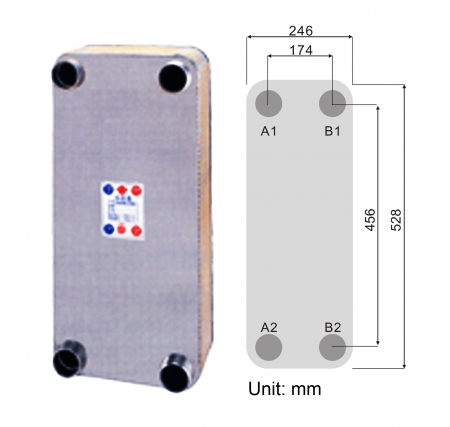

Model/ItemDIMENSIONS Heat Transfer Area/ plate (m²) Total Heat Transfer Area (m²) Volume/Channel (Liter) Total Volume (Liter) N.W. (KGS) Inquiry
L1 (mm) L2 (mm) W1 (mm) W2 (mm) H Thickness (mm)
K205 528 456 246 174 14.0+2.40*N 0.1099 (N-2)*0.1099 0.232 (N-1)*0.232 8.01+0.480*N
K205S 528 456 246 174 16.5+2.40*N 0.1099 (N-2)*0.1099 0.232 (N-1)*0.232 14.25+0.480*N
ADD INQUIRY
Chiller/Heat Pump
(KW)
Compressor
(hp)
Evaporator/Condenser
Evaporator
ONLY
37
12.5
K205 x 30C
-
45
15
K205 x 40C
K205 x 40V
60
20
K205 x 60C
K205 x 60V
75
25
K205 x 80C
K205 x 80V
90

30
K205 x 100C
K205 x 100V
