Description

- 7 models for choice, capacity range is from 0.95 to 4.98 kW.
- With plastic casing, easy to handle. Low noise and vibration. (CDT075-CDT150).
- Plastic base plate: For CDT075, CDT100 & CDT125.
- With galvanized steel base plate: For CDT048, CDT150, CDT200 & CDT250.
- Low noise design, compared to conventional condenser less than 5db.
- Enhanced inner grooved copper tube for better performance.
- Galvanized steel upper cover and separated plastic fan guard for easy maintenance.
- Double fin pitches design makes cleaning much more easy. (except CDT048)
- Optional filter makes cleaning work much easier.
- Equipped with energy saving high efficiency fan motor.
- Noise test condition: Average noise at 1m distance, surrounding noise below 40db.
- All products are manufactured by automatic machines to keep in high quality level.
- Special fan guard design to make sure of safety.


*Subject to change without notification.

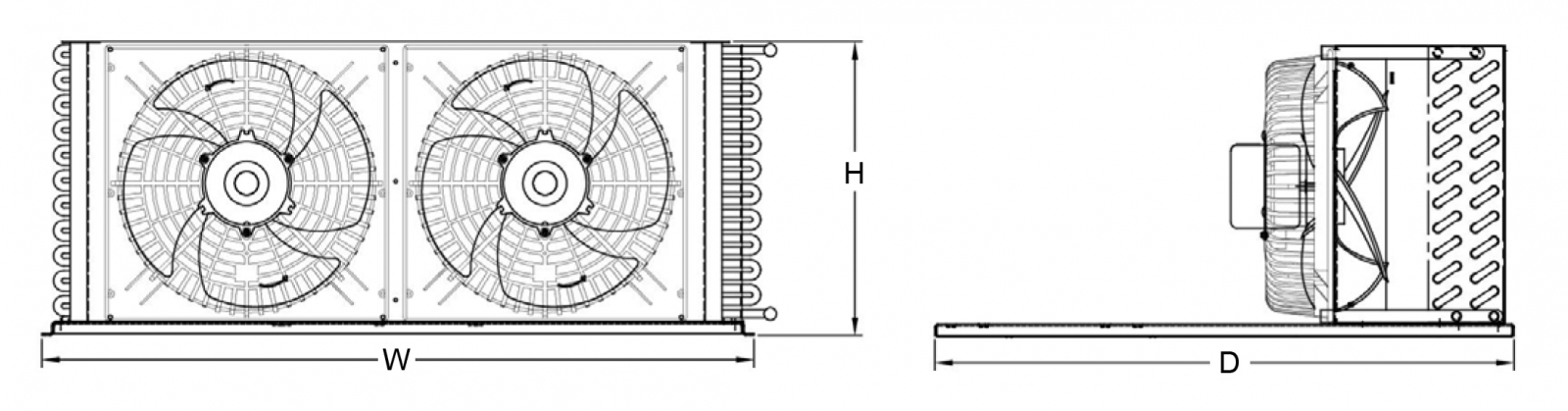

*Overall dimension including base plate.
*For condensing unit installed in bottom type showcase, be sure to consider maintenance for this condenser.
