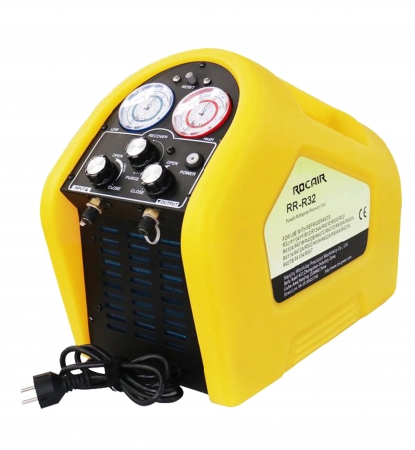

RR-R32 Refrigerant Recovery Machine

Components & Other Products
RR-R32 Refrigerant Recovery Machine
RR-R32 Refrigerant Recovery Machine

Description

ROCAIR Refrigerant Recovery Machine:
- Heavy-duty 1 HP brush-less motor with spark-free design.
- Twin-cylinder oil-free compressor for ultra-fast refrigerant recovery.
- Works with A2L refrigerants: R22, 134a, 410A, R32, 404A, R1234YF, R1234ZE.. including all common CFC, HFC, HCFC.
- Built-in oversized fan&condenser provide high cooling efficiency.
- High pressure auto shut-off with 550Psi. auto-reset functions.
- Large-size pressure gauge for easy readings.
- Color-coded meters with pressure reading PSI, BAR.
- High & low mainfold set assembly in the equipment with stainless steel ball valve for flow controls.
- Light-weight, heavy-duty reinforced case design.

ADD INQUIRY

Specifications

Model/ItemDESCRIPTION Inquiry
RR-R32 Refrigerant Recovery Machine Works with A2L refrigerants including all common CFC, HFC, HCFC refrigerants; Includes 1pc 14.3L(30Lbs) Cylinder
Technical Information
Refrigerants R22, 134a, 410A, R32, 404A, R1234YF, R1234ZE.. Including all common CFC, HFC, HCFC
Compressor Motor Horsepower 1 HP
Power Supply 220V, 50Hz
Compressor Type Oil-free, Air-Cooled, Piston Style
Operating Temperature 0°C to 50°C
Vapor Recovery Rate ≤33.9 Kg/H
Liquid Recovery Rate ≤250 Kg/H
Push/Pull Recovery Rate ≤672 Kg/H
High Pressure Protection     (Auto Shut-off device) 3.80 Mpa.
Low Pressure Protection      (Auto Shut-off device) -0.04 Mpa.
Input/Output Pipe Size 1/4" SAE
Dimensions (L*W*H) 55.6*27.6*41.6 cm
Net Weight 9.9 Kgs
Equipped Cylinder 14.3L(30Lbs)  EN13322-1 Standard
