RR-1200P/B Edgemount Mechanical Latches

Components & Other Products
RR-1200P_B Edgemount Mechanical Latches
RR-1200P_B Edgemount Mechanical Latches

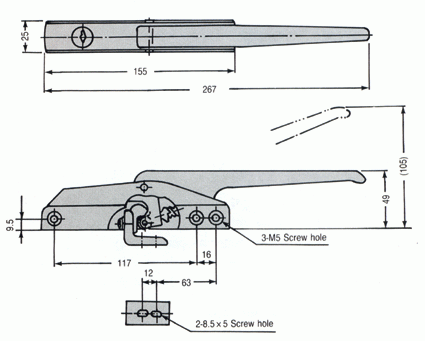

RR-1200s Drawing

Description

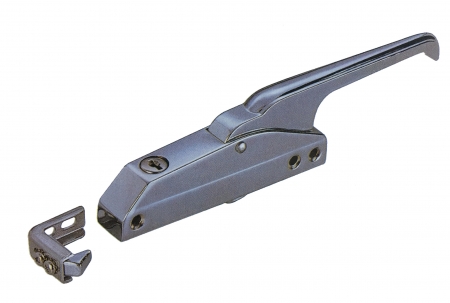

Edgemount Mechanical Latches:
RR-1200P:
- Material: High pressure die-cast zinc.
- Finish: Highly polished chrome plated.
- Offset: Standard strike adjustable from 18mm to 22mm.
- Specialty: Use plastic roller to open/close.
- Action: Large or Medium Refrigerator Doors.

Packing: 1 Body and Strike per Box; 50 Boxes per Carton.

RR-1200B:
- Same specification as RR-1200P, but use brass roller.

ADD INQUIRY

Specifications

Model/ItemDESCRIPTION Inquiry
RR-1200P Edgemount Mechanical Latch
RR-1200B Edgemount Mechanical Latch Same specification as RR-1200P, but use brass roller.
