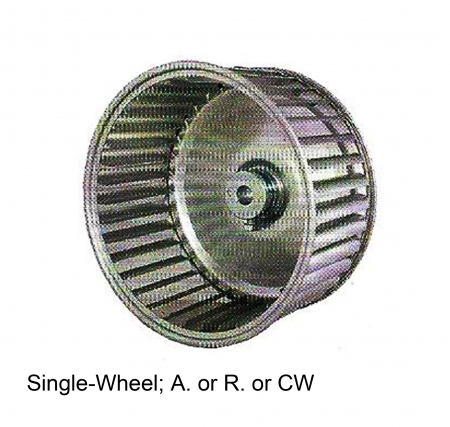

Single-Wheel Centrifugal Strip Wheel CW
Single-Wheel Centrifugal Strip Wheel CW

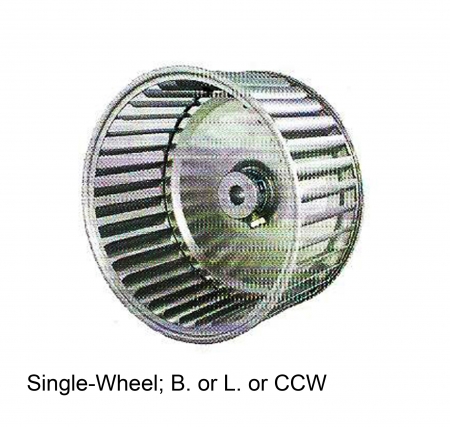

Single-Wheel Centrifugal Strip Wheel CCW

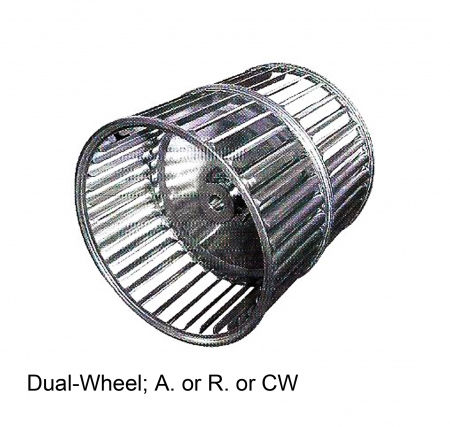

Dual-Wheel Centrifugal Strip Wheel

Description

Centrifugal Strip Wheels:
- Single/Dual-Wheel Models.

ADD INQUIRY

Specifications

Model/ItemInquiry
Single-Wheel Centrifugal Strip Wheels
Dual-Wheel Centrifugal Strip Wheels

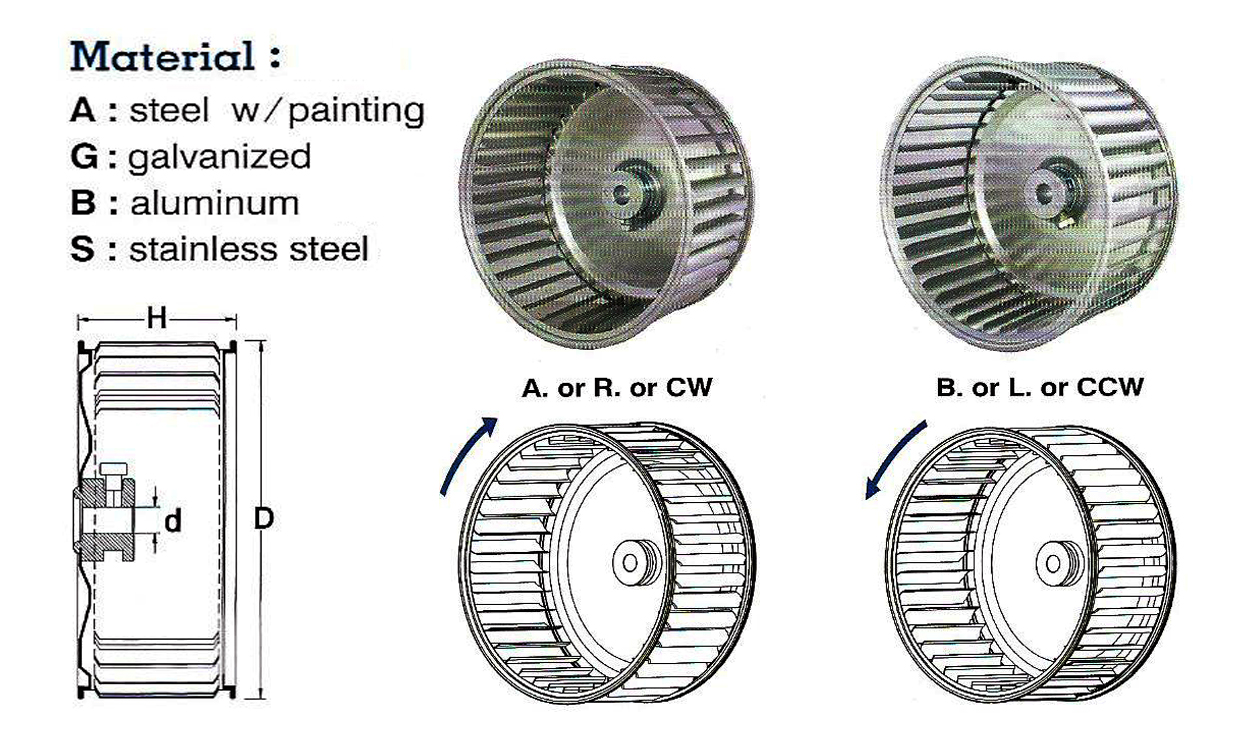

Single-Wheel Centrifugal Strip Wheels Specifications
Multi-Blade Impeller
Size Bore Keyway Rotation
R (CW), L (CCW)
D (mm) D (Inch) H (mm) d (mm) K (mm)
76 3 40 6/8   R, L
90 3.5 56 6/8   R, L
105 4 56 8   R, L
130 5 56/65/76 8/11/14   R, L
145 5.5 76/151 12/12.7/14   R, L
158 6 56/76/97 11/14   R, L
190 7.5 97 14   R, L
230 9 118 14/16   R, L
270 10.5 136 19/24 6x3, 8x4 R, L
310 12 156 24/28 8x4 R, L

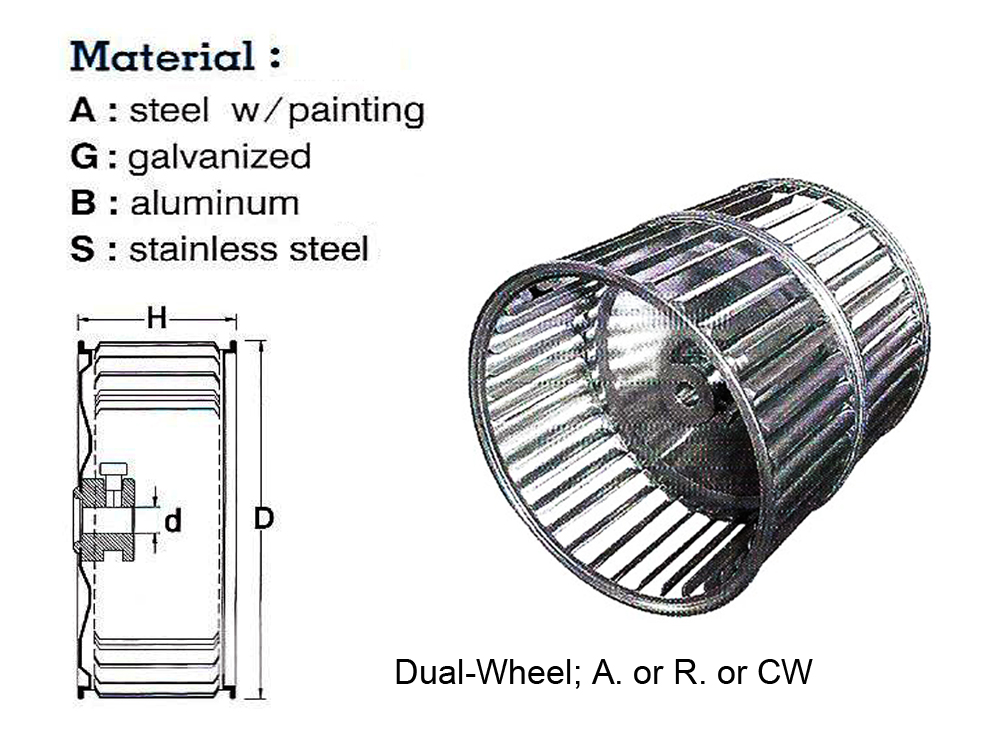

Dual-Wheel Centrifugal Strip Wheels Sepcifications
Multi-Blade Impeller
Size Bore Keyway Rotation
R (CW), L (CCW)
D (mm) D (Inch) H (mm) d (mm) K (mm)
130 5 152 8   R, L
145 5.7 200/300 12/12.7   R, L
158 6 152/200 12/14   R, L
190 7.5 200 14   R, L
230 9 236 14/16   R, L
270 10.5 274 14/19   R, L
310 12 310 24 8x4 R, L
