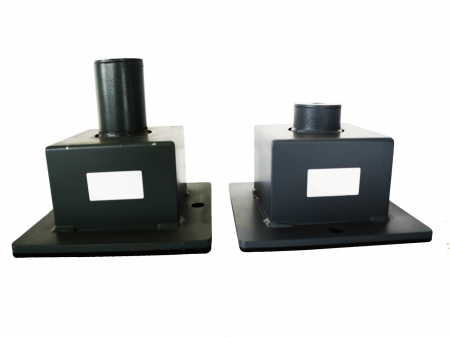

MK Series Shock Absorbers

Components & Other Products
MK Series Shock Absorbers
MK Series Shock Absorbers

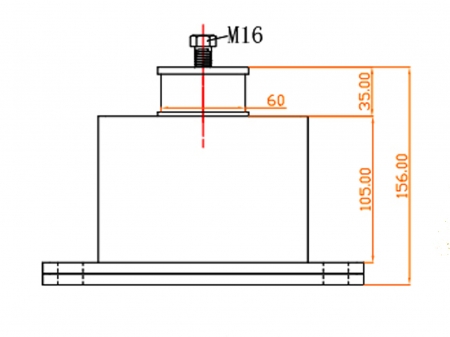

MK Series Shock Absorbers Drawing

Description

Spring Type Mount Shock Absorbers:
- Fully-enclosed, easy to install and fix.
- Additional rubber plate at the bottom to achieve the effect of double damping.
- Anti-side force function, better guarantee the stability and safety of the equipment.
- Impact-resistant & corrosion-resistant shell sealed combination to extend the service life.
- Used for: Various types of transformer shock absorbers, ice water mains, pumps & generator sets.

ADD INQUIRY

Specifications

Model/ItemLoad Range (Kg) Coefficient of Elasticity (Kg/mm) Applicable Deflection (mm) Spring Color Inquiry
MK-120 Shock Absorber 80-120 4.8 25 Green
MK-200 Shock Absorber 120-200 8 25 Red
MK-280 Shock Absorber 200-320 11.2 25 Blue
MK-360 Shock Absorber 320-400 14.4 25 Brown
MK-480 Shock Absorber 400-520 19.2 25 Gray
MK-600 Shock Absorber 520-640 22.4 25 White
MK-720 Shock Absorber 640-760 25.6 25 Orange
MK-1000 Shock Absorber 800-1000 28.8 25 Black
MK-1400 Shock Absorber 1000-1400 32 25 Yellow
