RMSA-CE Series Anti-Vibration Mounts
RMSA-CE Series Anti-Vibration Mounts

Description

Cylindrical Rubber Anti-Vibration/Shock Mounts:
- Can effectively absorb the vertical direction for supporting points of various machine objects to prevent impacts and overloads.
- Used For: Centrifuge industrial fans, all types of pump body, electric motor frequency converter, compressors and other industrial equipment.

ADD INQUIRY

Specifications

Model/ItemInquiry
RMSA-CE Series Cylindrical Rubber Anti-Vibration/Shock Mounts
Models and Specifications

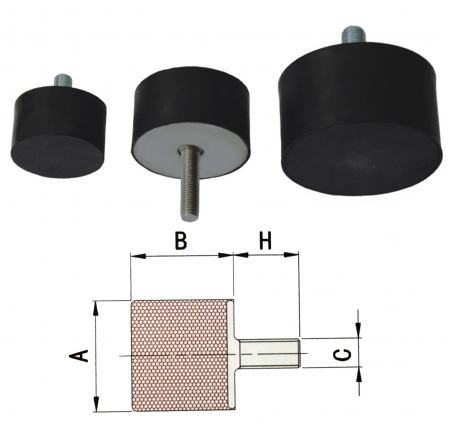

Model/Item     A       B                  Screw                       Maximum Load (Kg)        Deflection (mm)
        C         H           40 Degree             60 Degree
RMSA-CE8x8 8 8 M3      6\10 4 8 1.5
RMSA-CE10X8 10 8 M3  M4      6\10 5 10 1.5
RMSA-CE10X10 10 10 M3  M4      6\10 5 10 2
RMSA-CE10X15 10 15 M3  M4      6\10 5 10 2
RMSA-CE15X8 15 8 M3  M5   10\12\15 10 18 2
RMSA-CE15X10 15 10 M4  M5   10\12\15 10 18 2
RMSA-CE15X15 15 15 M4  M5   10\12\15 10 18 2
RMSA-CE15X20 15 20 M4  M5   10\12\15 10 18 2
RMSA-CE15X30 15 30 M4  M5   10\12\15 10 18 2
RMSA-CE20X8 20 8 M6     8\10\16 10 20 1.5
RMSA-CE20X10 20 10 M6     8\10\16 10 20 1.5
RMSA-CE20X15 20 15 M6     8\10\16 13 25 2
RMSA-CE20X20 20 20 M6     8\10\16 13 25 2
RMSA-CE20X25 20 25 M6     8\10\16 15 28 2
RMSA-CE20X23 20 23 M6     8\10\16 22 35 2.5
RMSA-CE23X10 23 10 M6 M8 10\15\23 13 25 1.5
RMSA-CE25X15 25 15 M6 M8 10\15\23 17 33 2
RMSA-CE25X20 25 20 M6 M8 10\15\23 17 33 2
RMSA-CE25X25 25 25 M6 M8 10\15\23 17 33 2
RMSA-CE25X30 25 30 M6 M8 10\15\23 21 41 2.5
RMSA-CE30X15 30 15 M8 16\20\23 22 40 2
RMSA-CE30X20 30 20 M8 16\20\23 22 40 2
RMSA-CE30X25 30 25 M8 16\20\23 22 40 2
RMSA-CE30X30 30 30 M8 16\20\23 28 50 2.5
RMSA-CE30X40 30 40 M8 16\20\23 28 50 2.5
RMSA-CE40X20 40 20 M8 M10 23\27 26 48 2
RMSA-CE40X25 40 25 M8 M10 23\27 26 48 2
RMSA-CE40X30 40 30 M8 M10 23\27 32 60 2.5
RMSA-CE40X40 40 40 M8 M10 23\27 38 72 3
RMSA-CE50X20 50 20 M10 M12 23\27\32 30 56 2
RMSA-CE50X25 50 25 M10 M12 23\27\32 30 56 2
RMSA-CE50X30 50 30 M10 M12 23\27\32 38 70 2.5
RMSA-CE50X40 50 40 M10 M12 23\27\32 45 85 3
RMSA-CE50X45 50 45 M10 M12 23\27\32 45 85 3
RMSA-CE50X50 50 50 M10 M12 23\27\32 45 85 3
RMSA-CE60X30 60 30 M10 M12 27\32\37 60 110 2.5
RMSA-CE60X35 60 35 M10 M12 27\32\37 60 110 2.5
RMSA-CE60X40 60 40 M10 M12 27\32\37 60 110 2.5
RMSA-CE60X45 60 45 M10 M12 27\32\37 72 132 3
RMSA-CE60X50 60 50 M10 M12 27\32\37 72 132 3
RMSA-CE60X60 60 60 M10 M12 27\32\37 72 132 3
RMSA-CE70X30 70 30 M12 M16 37\42 110 200 2.5
RMSA-CE70X40 70 40 M12 M16 37\42 135 240 3
RMSA-CE70X45 70 45 M12 M16 37\42 135 240 3
RMSA-CE70X50 70 50 M12 M16 37\42 135 240 3
RMSA-CE70X55 70 55 M12 M16 37\42 160 280 3.5
RMSA-CE70X65 70 65 M12 M16 37\42 160 280 3.5
RMSA-CE75X25 75 25 M12 M16 37\42 100 180 2
RMSA-CE75X40 75 40 M12 M16 37\42 150 270 3
RMSA-CE75X45 75 45 M12 M16 37\42 150 270 3
RMSA-CE75X50 75 50 M12 M16 37\42 150 270 3
RMSA-CE75X55 75 55 M12 M16 37\42 175 315 3.5
RMSA-CE80X40 80 40 M12 M16 42\47 150 280 3
RMSA-CE80X40 80 50 M12 M16 42\47 175 280 3
RMSA-CE80X60 80 60 M12 M16 42\47 205 325 3.5
RMSA-CE80X80 80 80 M16 42\47 235 370 4
RMSA-CE100X30 100 30 M16 42\47 190 350 2.5
RMSA-CE100X40 100 40 M16 42\47 230 420 3
RMSA-CE100X45 100 45 M16 42\47 230 420 3
RMSA-CE100X50 100 50 M16 42\47 230 420 3
RMSA-CE100X55 100 55 M16 42\47 270 490 3.5
RMSA-CE100X60 100 60 M16 42\47 310 560 4
RMSA-CE100X75 100 75 M16 42\47 310 560 4
RMSA-CE100X100 100 100 M16 42\47 390 700 5
RMSA-CE150X75 150 75 M16 M20 42\47 750 1400 5
