K105/S-HVAC Heat Exchangers

Components & Other Products
K105 HVAC Heat Exchanger
K105 HVAC Heat Exchanger

Description

- Compact and Efficient HVAC Heat Exchangers.

ADD INQUIRY

Specifications

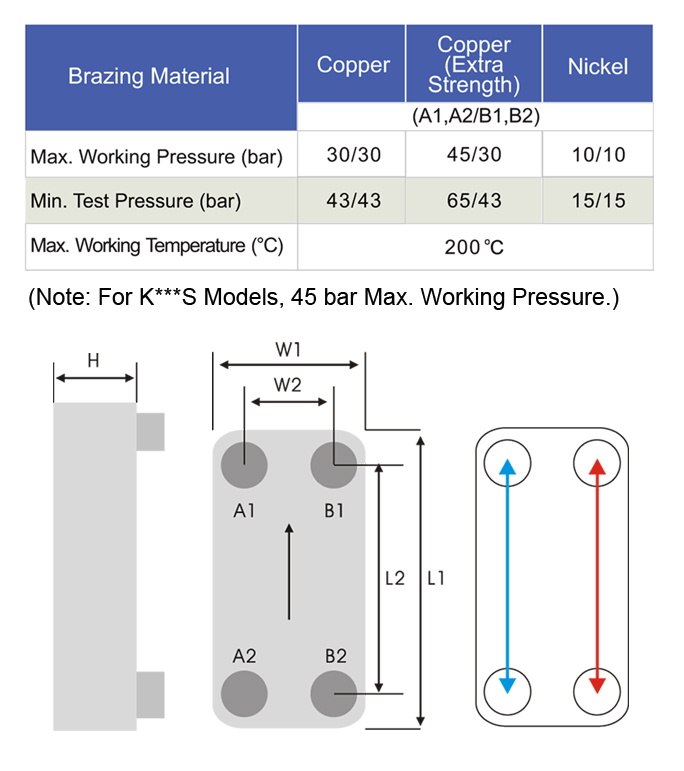

Model/ItemDIMENSIONS Heat Transfer Area/ plate (m²) Total Heat Transfer Area (m²) Volume/Channel (Liter) Total Volume (Liter) N.W. (KGS) Inquiry
L1 (mm) L2 (mm) W1 (mm) W2 (mm) H Thickness (mm)

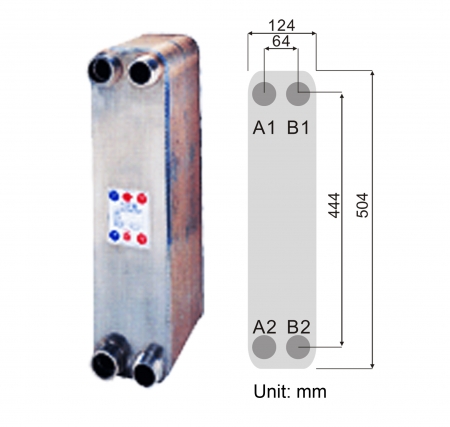

K105 504 444 124 64 11.0+2.38*N 0.0533 (N-2)*0.0533 0.107 (N-1)*0.107 3.80+0.230*N
K105S 504 444 124 64 13.0+2.38*N 0.0533 (N-2)*0.0533 0.107 (N-1)*0.107 6.32+0.237*N
ADD INQUIRY
Chiller/Heat Pump
(KW)
Compressor
(hp)
Evaporator/Condenser
Evaporator
ONLY
9
3
K105 x 18B
-
12
4
K105 x 26B
-
15
5
K105 x 30B
-
22
7.5
K105 x 40B
-
30
10
K105 x 60C
K105 x 60CV
38
12.5
K105 x 80C
K105 x 80CV
