RR-INS02 Insulated Torque Wrench Handle

HVAC/Refrigeration & Plumbing Servicing Tools

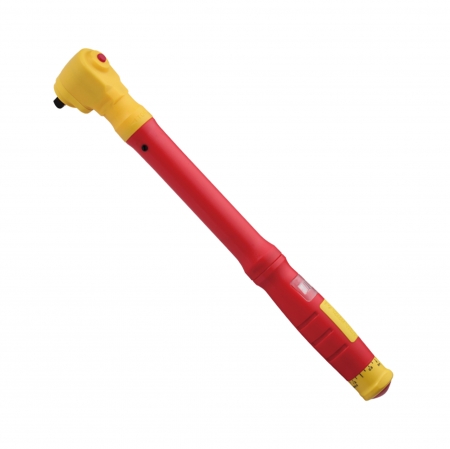

RR-INS02 Insulated Torque Wrench (Click Type)
RR-INS02 Insulated Torque Wrench (Click Type)
RR-INS02 Handle Description

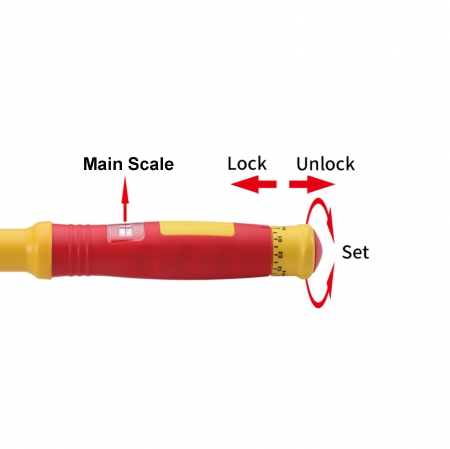

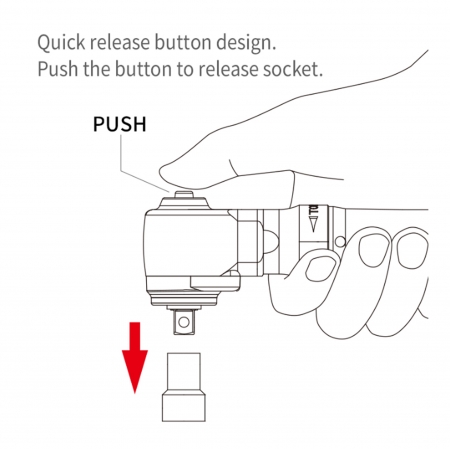

RR-INS02 Operation Instruction

Description

Insulated Torque Wrench Handle (Click Type):
- Anti Electric-Shock.
- For 3/8" Insulated Sockets & Extensions. (RR-INS02-30/60/100)
- For 1/2" Insulated Sockets & Extensions. (RR-INS02-200/300)
- Insulation Meets All Requirements of The VDE Standard Relevant International Standards. (IEC 60900)
- Direction & Accuracy : C.W. ±4%




ADD INQUIRY

Specifications

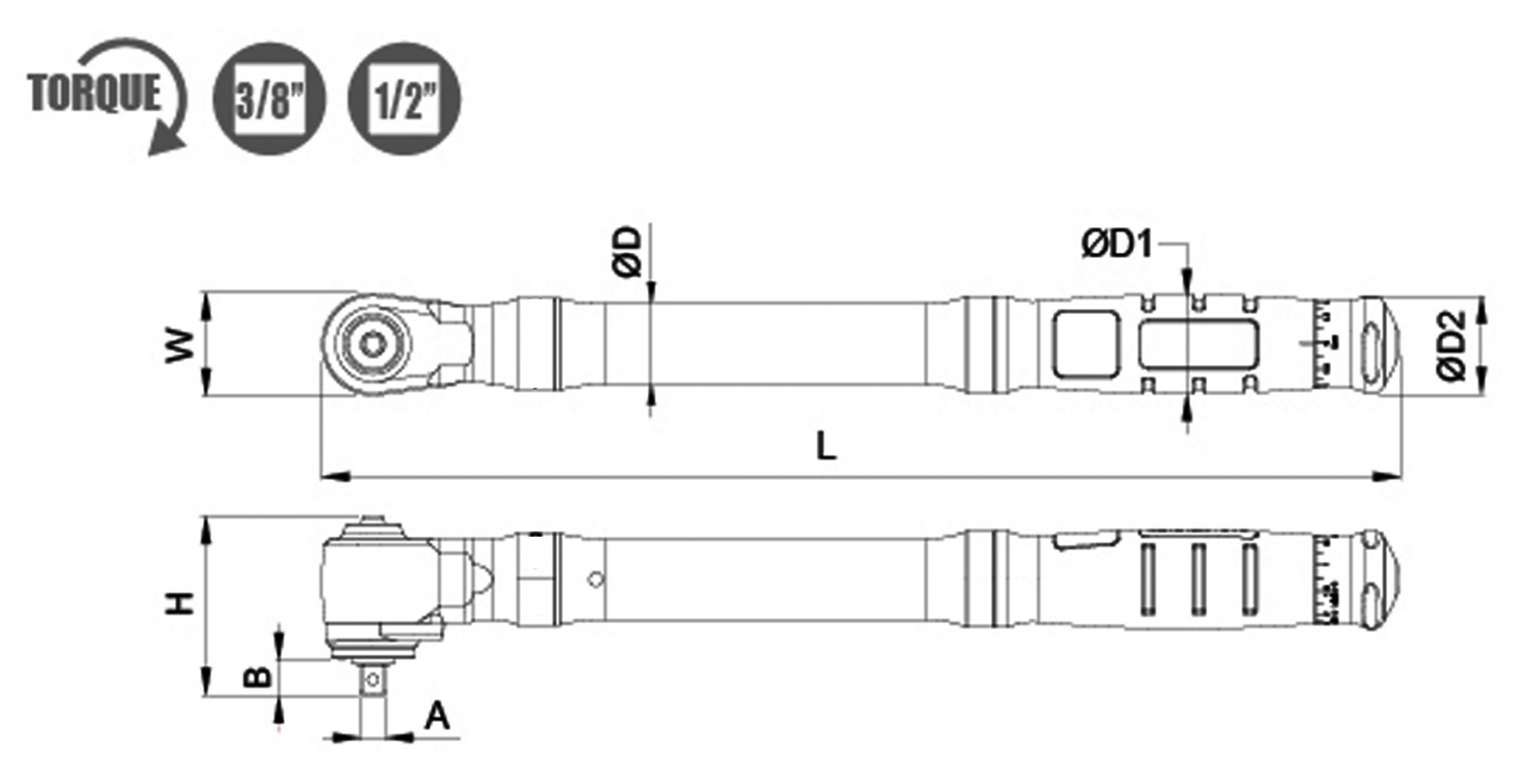

Model/ItemDESCRIPTION Size Dimensions (cm) Inquiry
RR-INS02-30 6-30Nm Insulated Torque Wrench Handle 3/8" ; Scale: 0.1Nm W: 3.82 ; H: 6.70 ; B: 1.19 ; L: 29.94 ; D: 3.00
RR-INS02-60 10-60Nm Insulated Torque Wrench Handle 3/8" ; Scale: 0.25Nm W: 3.82 ; H: 6.70 ; B: 1.19 ; L: 35.06 ; D: 3.00
RR-INS02-100 20-100Nm Insulated Torque Wrench Handle 3/8" ; Scale: 0.25Nm W: 3.82 ; H: 6.70 ; B: 1.19 ; L: 40.11 ; D: 3.00
RR-INS02-200 40-200Nm Insulated Torque Wrench Handle 1/2" ; Scale: 1Nm W: 5.00 ; H: 8.21 ; B: 1.36 ; L: 44.70 ; D: 3.20
RR-INS02-300 60-300Nm Insulated Torque Wrench Handle 1/2" ; Scale: 2Nm W: 5.00 ; H: 8.21 ; B: 1.36 ; L: 57.60 ; D: 3.20
ADD INQUIRY
