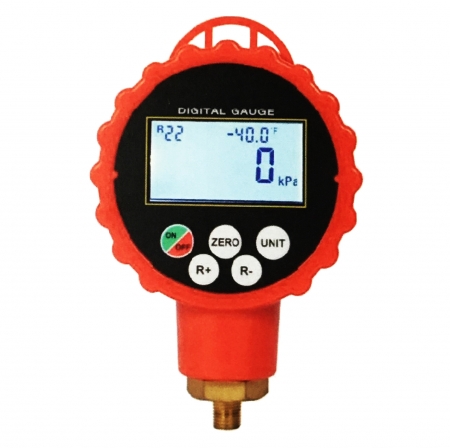

RGD-H Digital Refrigerants/Vacuum Manifold Gauge
Components & Other ProductsDescription
Digital High Pressure Refrigerants/Vacuum Manifold Gauge:
- For use in a refrigeration system.

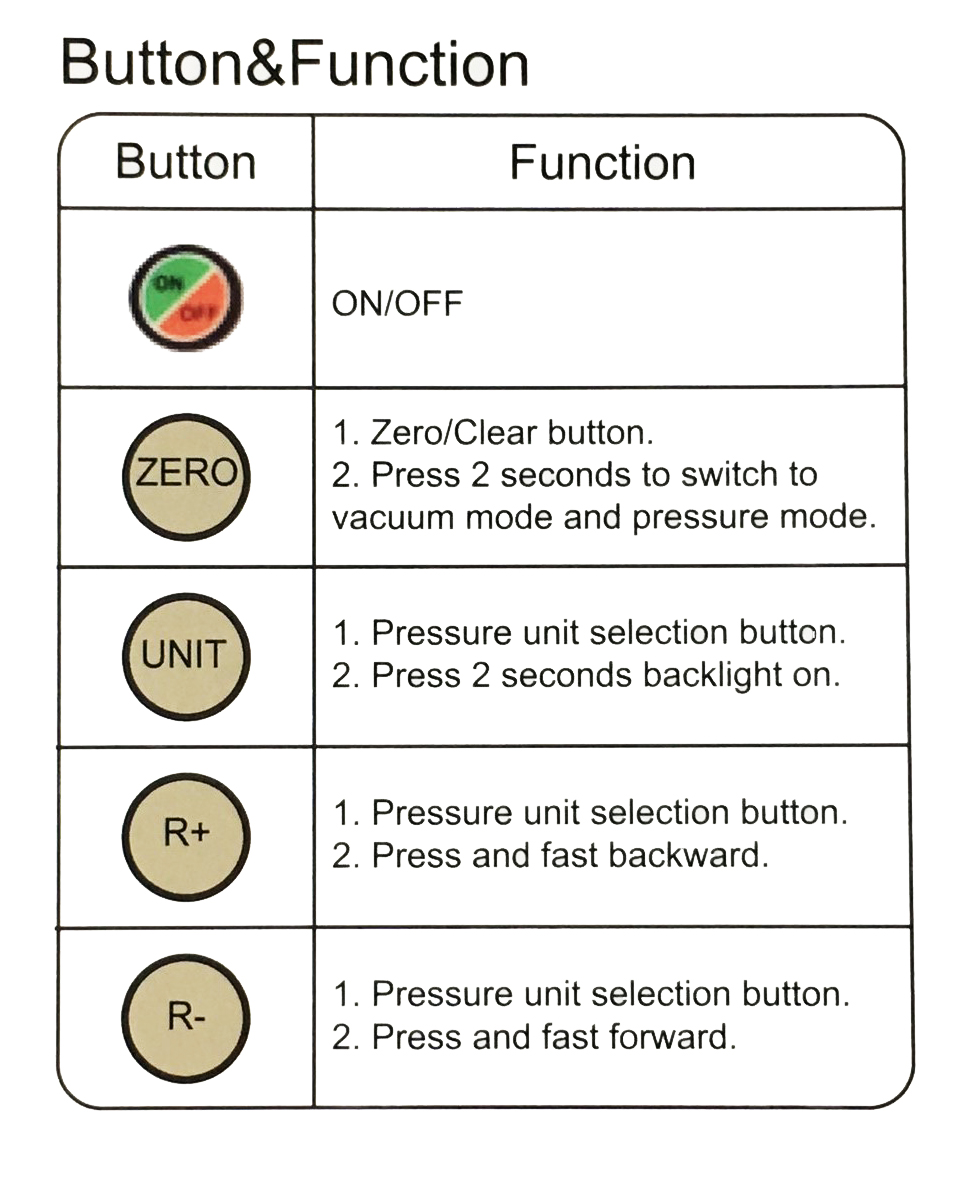

- Pressure/Vacuum Mode Shift Function.
- Accuracy: ±0.5%.
- Bar, kPa, psi, Torr, Kgf/c㎡, ℃&℉, In-Hg, Mm-Hg.
- Connection thread: 1/8" NPT or 1/4" SAE.
- 80mm, Stand-up Type.
- For R-22/R-32/R-134A/R-404/R-407C/R-410/R-507/HFO-1234yf/R-290 Refrigerants. (Does not apply to the ammonia-containing refrigerant)
- Real-Time vacuum pressure test and percent indicate.
- Vacuum Test Measurement Range: -101Kpa~0Mpa.
- Positive Pressure: 0Kpa~6Mpa.
- Refrigerant: -101Kpa~4Kpa.
- Operating Temp.: -20℃~60℃.
- Battery low power indicate function.
- Overload: 100Bar, 10Mpa.
*Safety- Please wear protective googles and gloves during the works, especially in high pressure, high temperature or low temperature environments. Toxic refrigerant overflow may cause harm to the human body.
