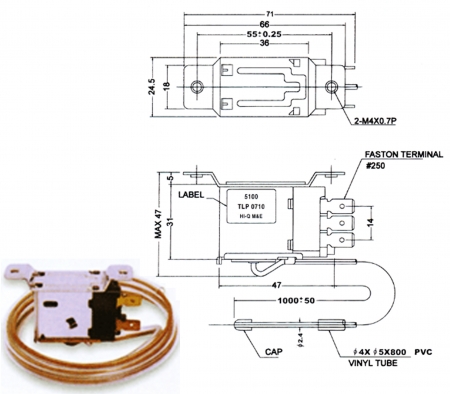

TLP0710 Pressure Control

Components & Other Products
TLP0710 Pressure Control
TLP0710 Pressure Control

Description

- Pressure Control For Air-Conditioners.

ADD INQUIRY

Specifications

Model/ItemOperating Pressure (Kgf/c㎡) Range (Kgf/c㎡) Contact Style Max Operating Pressure (Kgf/c㎡) Max Bellow Pressure (Kgf/c㎡) Max Allowable Temp. (℃) Capillary Tube Length (mm) Inquiry
ON OFF EIFF MIN. MAX.
TLP0710 Pressure Control 1.7 0.7±0.2 1.0-0.6 1.0-0.4 - - S.P.D.T. 15 16.5 70 1000
