RMSA Rubber Mounts
Components & Other Products
Description
- Simple structure design and easy to install.
- Natural rubber provides relatively large static disturbances.
- Good vibration damping effect in the 15 Hz (900 RPM) operating environment with vibration frequency (~90% vibration reduction).
- Load capacity range from 12 kg to 200 kg.
- Used for: Heating, ventilation and air conditioning equipment; pumps, fans, compressors and control cabinets.
ADD INQUIRY

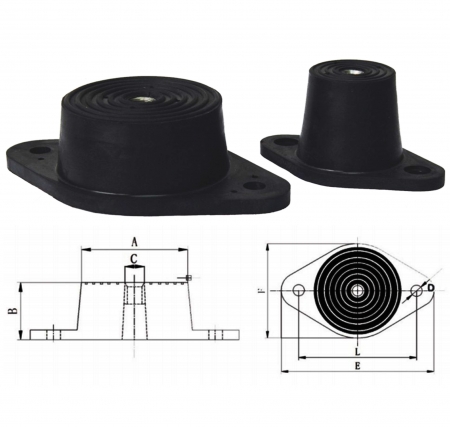

| Model/Item | A | B | C | D | E | F | L | Max. Deflection (mm) | Maximum Load (Kg) | ||
| 40 Degree | 60 Degree | 75 Degree | |||||||||
| RMSA-1 Rubber Mount | 30 | 38 | M8 | M8 | 81 | 41 | 60 | 4 | 12 | 25 | 30 |
| RMSA-2 Rubber Mount | 44 | 48 | M10 | M10 | 98 | 59 | 76 | 4 | 30 | 60 | 80 |
| RMSA-3 Rubber Mount | 60 | 71 | M10 | M10 | 143 | 86 | 105 | 6 | 70 | 120 | 180 |
| RMSA-4 Rubber Mount | 86 | 70 | M10 | M10 | 159 | 102 | 127 | 10 | 190 | 370 | 500 |
| RMSA-5 Rubber Mount | 108 | 60 | M16 | M12 | 212 | 132 | 165 | 10 | 400 | 800 | 1200 |
