Single-Wheel Centrifugal Tablock Wheels CW

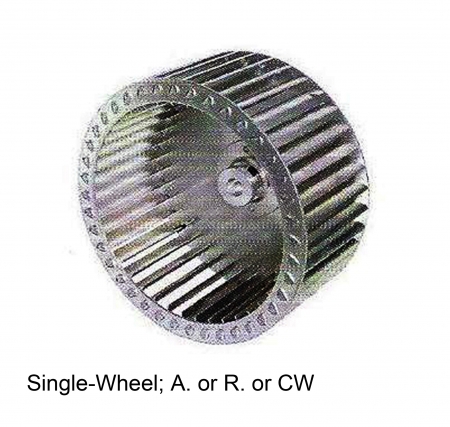

Single-Wheel Centrifugal Tablock Wheels CW

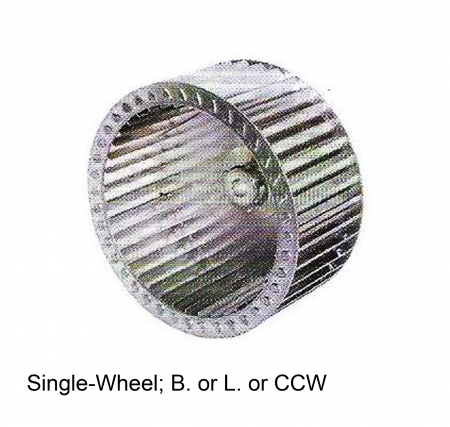

Single-Wheel Centrifugal Tablock Wheels CCW

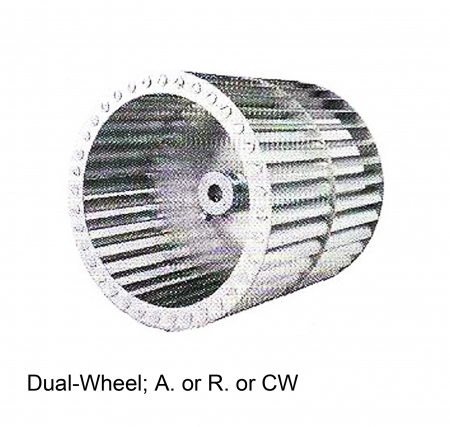

Dual-Wheel Centrifugal Tablock Wheels CW

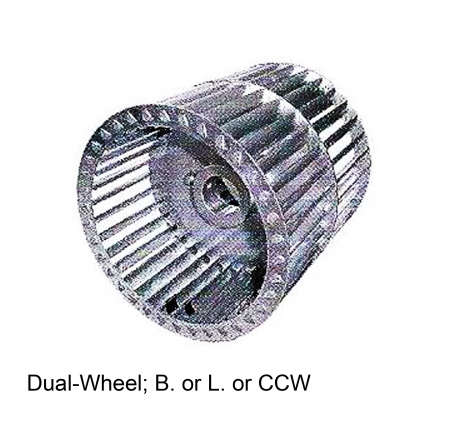

Dual-Wheel Centrifugal Tablock Wheels CCW

Description

Centrifugal Tablock Wheels:
- Single/Dual-Wheel Models.

ADD INQUIRY

Specifications

Model/ItemInquiry
Single-Wheel Centrifugal Tablock Wheels
Dual-Wheel Centrifugal Tablock Wheels

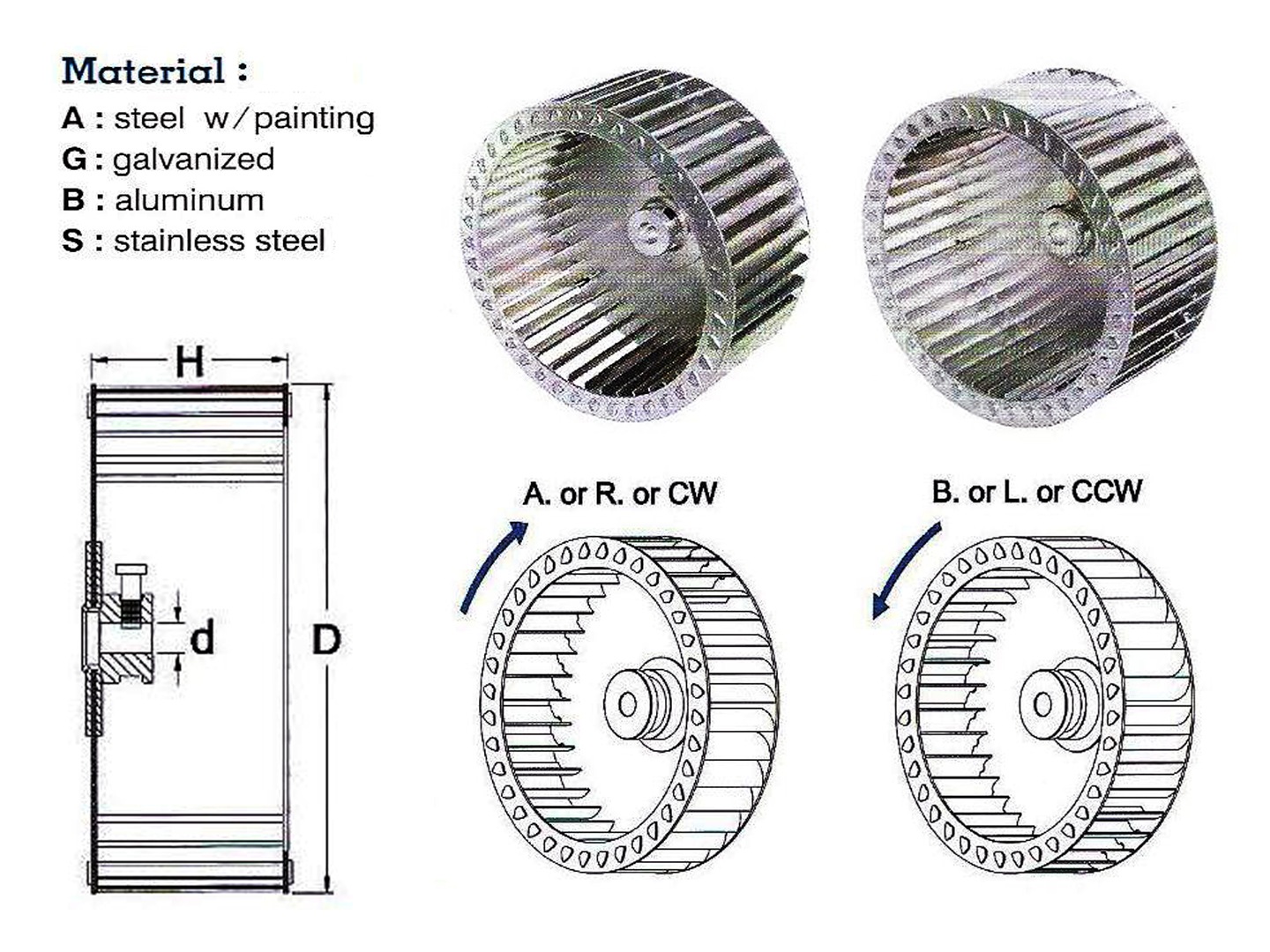

Single-Wheel Centrifugal Tablock Wheels Specifications
Multi-Blade Impeller
Size Bore Keyway Rotation
R (CW), L (CCW)
D (mm) D (Inch) H (mm) d (mm) K (mm)
127 5 - - - R, L
152 6 - - - R, L
170 6.5 - - - R, L
178 7 - - - R, L
190 7.5 - - - R, L
200 8 - - - R, L
230 9 - - - R, L
248 9.6 - - - R, L
270 10.5 - - - R, L
280 11 - - - R, L
295 11.6 - - - R, L
305 12 - - - R, L
330 13 - - - R, L
356 14 - - - R, L
380 15 - - - R, L
456 18 - - - R, L
533 21 - - - R, L
610 24 - - - R, L
685 27 - - - R, L
763 30 - - - R, L
** Sections marked " - " are based on IEC standard specs, or can be customized on requests.

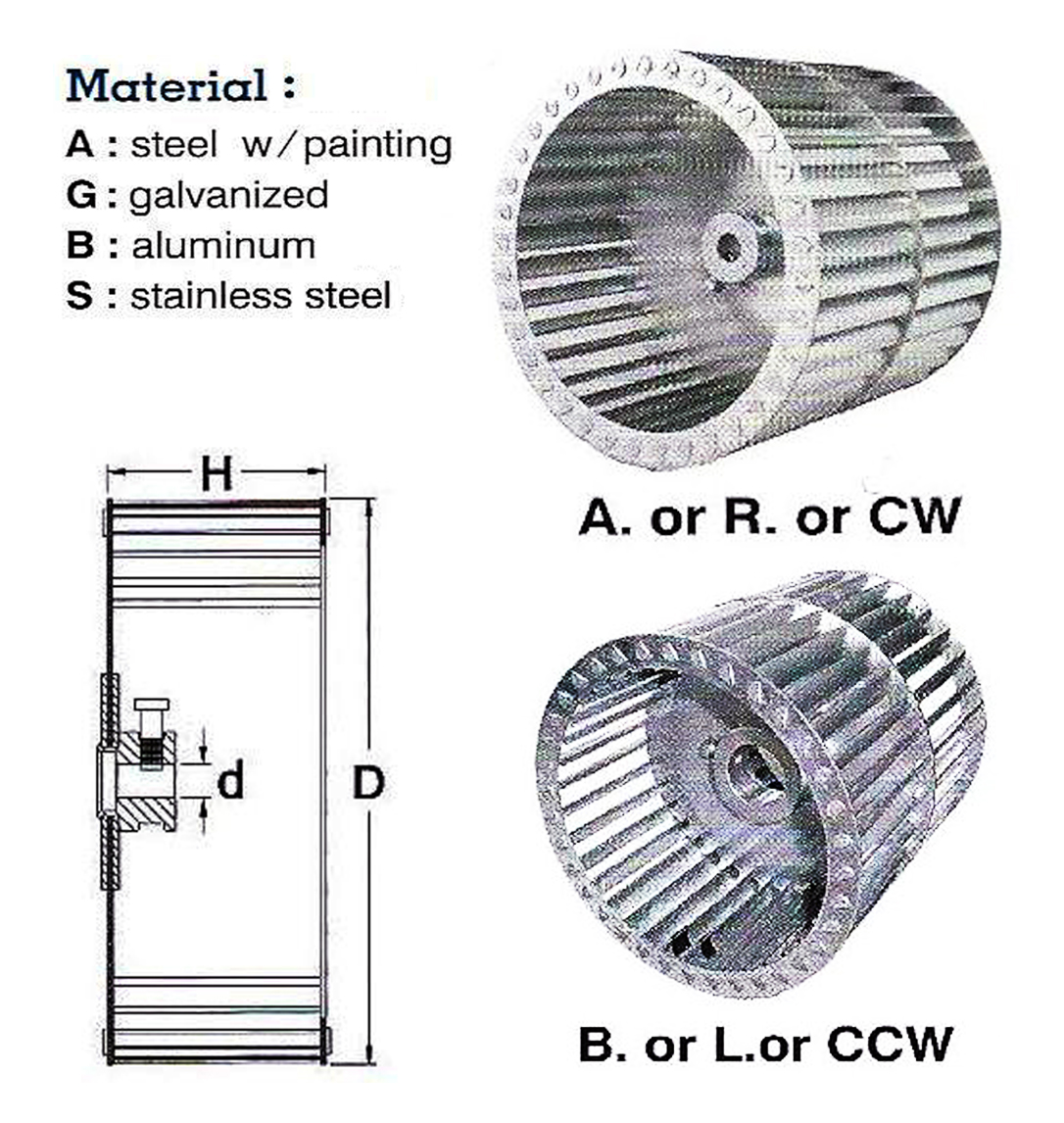

Dual-Wheel Centrifugal Tablock Wheels
- Above Tablock Multi-Blade Impellers can be conjoined as double-inlet type (Hx2) indicated as C* B-M Impellers.
