TUP3028 Thermostats

Components & Other Products

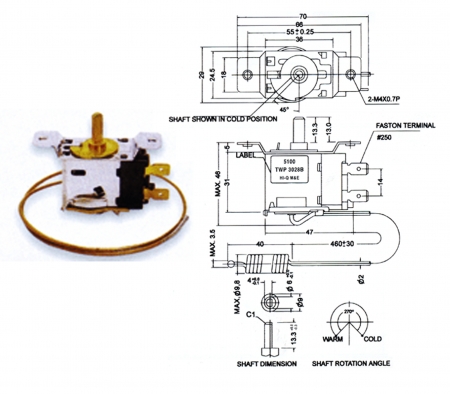

TUP3028 Thermostat
TUP3028 Thermostat

Description

- Thermostats For Air Conditioners.

ADD INQUIRY

Specifications

Model/ItemOperating Temp. (℃) Temp. Conditions Contact Style Capillary Tube Length (mm) Inquiry
Cold Normal Warm DIFF
ON OFF ON OFF ON OFF
TUP3028 Thermostat 17.4 14.2 29.4 27.4 32.6 30.3±2.5 2.3-1.2 2.3-0.3 Tb>Ts S.P.D.T. 470
TUP3028B Thermostat 13.8 10 - - 32.6 30.3±2.5 2.3-1.2 2.3-0.3 Tb>Ts S.P.D.T. 460
