K070 HVAC Heat Exchanger
K070 HVAC Heat Exchanger

Description

- Compact and Efficient HVAC Heat Exchangers.

ADD INQUIRY

Specifications

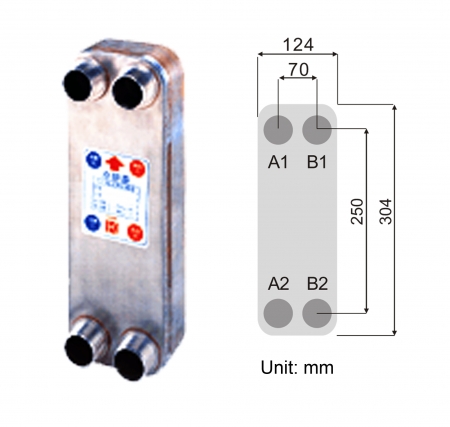

Model/ItemDIMENSIONS Heat Transfer Area/ plate (m²) Total Heat Transfer Area (m²) Volume/Channel (Liter) Total Volume (Liter) N.W. (KGS) Inquiry
L1 (mm) L2 (mm) W1 (mm) W2 (mm) H Thickness (mm)
K070 304 250 124 70 10.0+2.3*N 0.0300 (N-2)*0.0300 0.065 (N-1)*0.065 1.65+0.134*N
K070S 304 250 124 70 12+2.38*N 0.0300 (N-2)*0.0300 0.065 (N-1)*0.065 2.78+0.134*N
ADD INQUIRY
Chiller/Heat Pump
(KW)
Compressor
(hp)
Evaporator/Condenser
Evaporator
ONLY
1.5
0.5
K070 x 14C
K070 x 14C
3
1
K070 x 14C
K070 x 14C
6
2
K070 x 20C
K070 x 20C
10
3
K070 x 34C
K070 x 34C
13
4
K070 x 50C
K070 x 50C
16
5
K070 x 70C
K070 x 70
