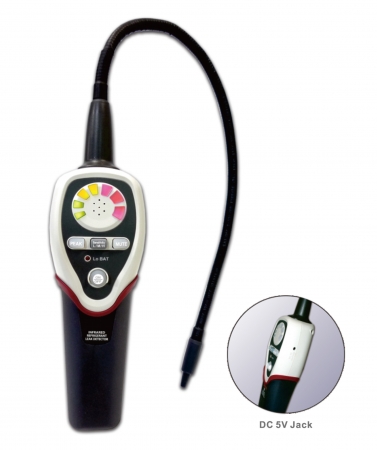

Infrared Refrigerant Leakage Detector

Digital Test Instruments
Infrared Regrigerant Leakage Detector
Infrared Regrigerant Leakage Detector

Description

Infrared Refrigerant Leakage Detector:
- For maintaining the air-condition or a cooling system with compressor and refrigerant.
- Multi-colour visual display.
- Mirco-processor control with advanced digital signal processing.
- Infrared gas sensor.
- 3 Levels of leak sensitivity selector.
- 7 LED Tri-colored visual leak level indicator.
- Peak performance: Find leaks in noisy environment.
- Auto-zero and background compensation.
- Ambient concentration reset.
- 15.5" (40CM) Flexible stainless probe.
- Detection of R22, R32, R134A, R290, R404A, R407C, R410A, R600A & HFO-1234yf refrigerant gases.
- Operating temperature: 0 to 40°C (32 to 104°F).
- Warm-up time: 45 Seconds.
- Reference leak source included.
- Sensitivity as small 3gr/year.
- Low battery indication.
- Mute function.
- Accordance with SAE J1627, CE Design.

Size: 25.4 x 7.1 x 5.4 cm.
Weight: 416g (with batteries).
Power Source: 3.7VDC Rechargeable lithium batteries.
Battery Life: Approx. 8hrs.
AC Adapter: @5V 1A.

ADD INQUIRY

Specifications

Model/ItemDESCRIPTION Inquiry
RL-388 Infrared Refrigerant Leakage Detector Detection of R22, R32, R134A, R290, R404A, R407C, R410A, R600A & HFO-1234yf refrigerant gases.
