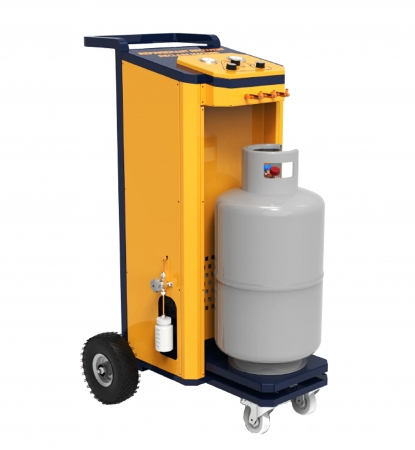

RR-RC502 Portable Refrigerant Recovery/Reclamation Machine

Components & Other Products
Portable Refrigerant Reclamation Machine
Portable Refrigerant Reclamation Machine

Description

ROCAIR Portable Refrigerant Recovery/Reclamation Machine:
- Can be used in commercial refrigeration and automotive A/C systems.
- For production line of air conditioning factories, automotive 4S shops, and on-site maintenance of small HVAC/R products.
- Large-wheels trolley design convenient for work site use.
- Integrate recovery, recharge, reclaim & vacuum functions.
- Easy to eliminate the foreign matter and air mixing in refrigerants; Purifying refrigerants to make them repeatedly reusable.
- Electronic measurements, accurate controls, automatic stop after recovery and recharging completion.
- 1HP Oil-free compressor capable of handling of various kinds of common refrigerants.
- Protection function with auto shut-off devices against over-voltage, overweight and overload.
- Large-power oil separating device is available.
- Optional choice configuration of fluorescence leak detection function and large-power vacuum pump available.
- With 20Kg tank; 40Kg tank is also available.
- Other tank options are available upon requests.

ADD INQUIRY

Specifications

Model/ItemDESCRIPTION Inquiry
RR-RC502 Portable Refrigerant Recovery/Reclamation Machine For R22, R32, R500, R502, R134a, R404A, 407, R410A, R507A, R509A.. Refrigerants
Technical Information
Refrigerants R22, R32, R500, R502, R134a, R404A, R407C
R410A, R507A, R509A...
Compressor Motor Horsepower 1 HP
Power Supply 220V, 50Hz
Compressor Type Oil-free
Operating Temperature 0°C to 50°C
Oil Separator (Heat Exchanger Type) 2L
Recovery Method Vapor and/or Liquid
Reclaim Method Distillation Separation Method
Vapor Recovery Rate 10-20 Kg/H
Liquid Recovery Rate 60-120 Kg/H
Suction Pressure -0.05 to 15 Bar
Discharge Pressure 0 - 38 Bar
Overload Protection 5A
Over-pressure Protection 38 Bar
Equipped Cylinder 40L (With 3 nos) EN13322-1 Standard
Dimensions (L*W*H) 67*75*116 cm
Net Weight 130 Kgs
Accessories 1.5m Charging hoses with ball valves;
8pcs Filters; 2pcs Sight glasses;
24pcs Moisture absorbents;
Different adapters for R22, R32, R410A
