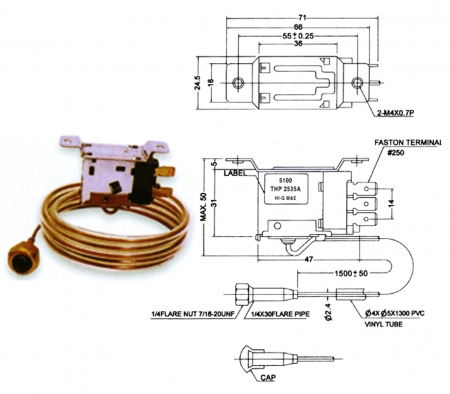

THP2535A Pressure Control
THP2535A Pressure Control

Description

- Pressure Control For Air-Conditioners.

ADD INQUIRY

Specifications

Model/ItemOperating Pressure (Kgf/c㎡) Range (Kgf/c㎡) Contact Style Max Operating Pressure (Kgf/c㎡) Max Bellow Pressure (Kgf/c㎡) Max Allowable Temp. (℃) Capillary Tube Length (mm) Inquiry
ON OFF EIFF MIN. MAX.
THP2535A Pressure Control 21.5±1.0 25.0±1.0 3.5 20 30 S.P.D.T. 33 40 70 1000
